    1000L/Day Beer Brewing Equipment Micro Brewery Plant

    Ask Lasest Price
    Brand Name : ZUNHUANG
    Model Number : ZHET-1000L
    Certification : CE ISO
    Price : USD5000-USD 75000
    Payment Terms : L/C, T/T, Western Union, MoneyGram, D/P
    Supply Ability : 30sets per month
    Delivery Time : 30days
    • Product Details
    • Company Profile

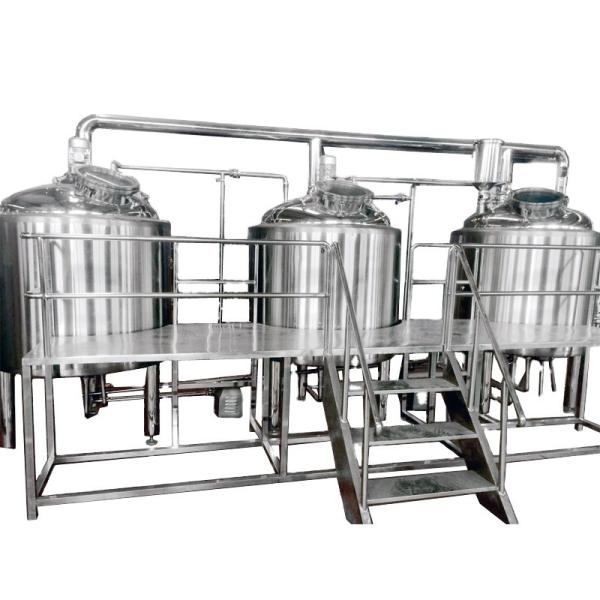

    1000L/Day Beer Brewing Equipment Micro Brewery Plant

    Product Description

    1000L per day beer brewing equipment micro brewery plant beer machine for sale

    The whole beer equipment is consisted of Mash system,Fermentation system,Refrigeration system,Control system and CIP cleaning system. The tank of the system all adopts Red copper and S.S 304,and the system also have high automatic control capacity. beer sales equipment tank

    Simple operation ,PLC automatic control system ,PLC semi-automatic control system.

    Equipments characteristics: small investment.quick effectiveness , high quality , lower prices , the investment repayment is fast , the service life of equipment is long , easy operation , lower cost.Strong technical force.

    At the same time if you have requirements, we could design and produce the products you need!


    Zunhuang series mash system consist of 1 vessel mash system, 2 vessels mash system, 3 vessels and other design, mainly includes mash tank, brew kettle, lauter tank and whirlpool. The main part of equipment in this system are made of SUS304, SS316 reaching international standard level.(Zunhuang company also can customized high quality copper equipment according to user place.)


    Fermenter cooling method is cooling dribbling with standard parameters, layout and control mode in domestic. Zunhuang companies design and manufacture cooling dribbling according to 0.4-0.5 meters per cubic meter cooling area. And the fermentation tank adopt two-stage cooling refrigerant control mode at the end of the cone and the tank level 10--15cm down. So such design and cooling method to control the flow of the cooling liquid state in fermentation tank by the size of the two-stage cooling refrigerant flow. It will improve heat transfer efficiency and cooling rate, faster cooling, and reduce cooling costs and high economic efficiency equipment commercial operation.

    Equipment list

    Beer Brewing Equipment

    1malt milling system

    malt miller machine

    grist case

    2Mash system

    Mash tank/Boiling tank

    lauter tank

    Whirlpool tank
    Hot water tank
    Mash/wort/hot water pump Motors
    Wort oxygenation device
    Operation platform
    Plate heat exchanger

    3Fermenting systemBeer fermenters
    Bright beer tanks
    Yeast adding tank
    Accessories, such as sample valve, pressure gauge, safety valve and so on
    4Cooling systemIce water tank
    Refrigerating unit
    Ice water pump
    5CIP cleaning systemdisinfection tank & alkali tank &cleaning pump etc.
    6ControllerControl system, we have PLC automatic and semi-automatic, the brand include LG, Siemens and so on.
    7Kegging systemkegging system ( keg washer and keg filler machine), the control system brand is Siemens.
    Equipment system

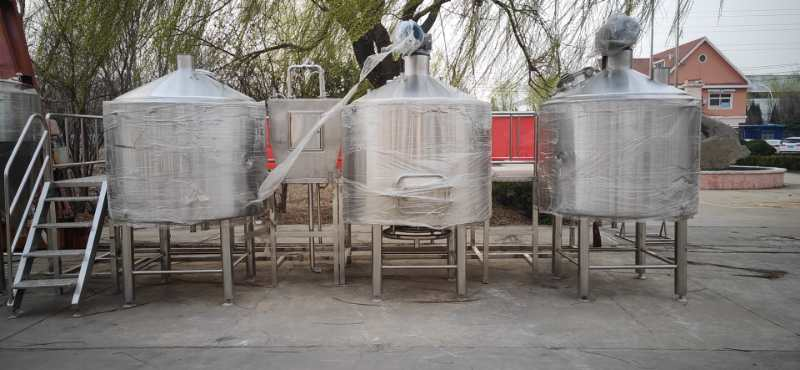

    1.Mash System

    Zunhuang series mash system consist of 1 vessel mash system, 2 vessels mash system, 3 vessels and other design, mainly includes mash tank, brew kettle, lauter tank and whirlpool.

    All the pipes and vales among the whole equipment are connected by sanitary joint for easy to connect, install, uninstall, move and alter.beer stainless steel fermenter

    Now Zunhuang equipment adopt electric heating, steam heating, gas heating and direct fire heating method on mash heating system.

    500L American 2 vessels

    American style: Mash tun/ Lauter+ Brew kettle/ Whirlpool+HLT.

    Material: SS304/SS316/SS316L/Red copper/Titanium plate/Other material.

    Heating method: Electric heating/ Steam heating/ Direct fire heating.

    For mash system, beside these main tanks also with other auxiliary equipment such as pump, plate heat exchanger, buffer tank, hop filter, platform, pipes and other necessary.

    Support customization, please contact for more requirements!

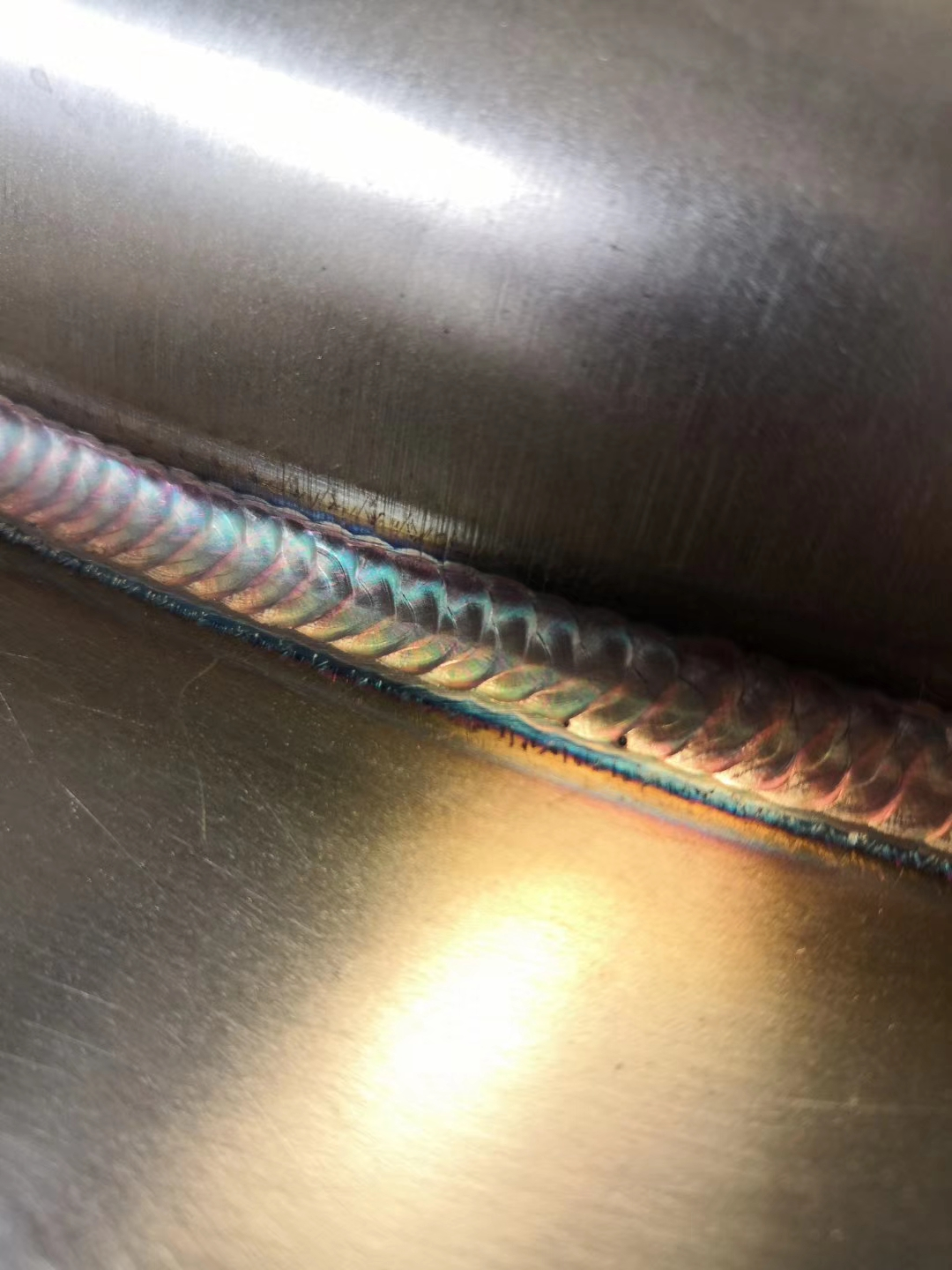

    Welding

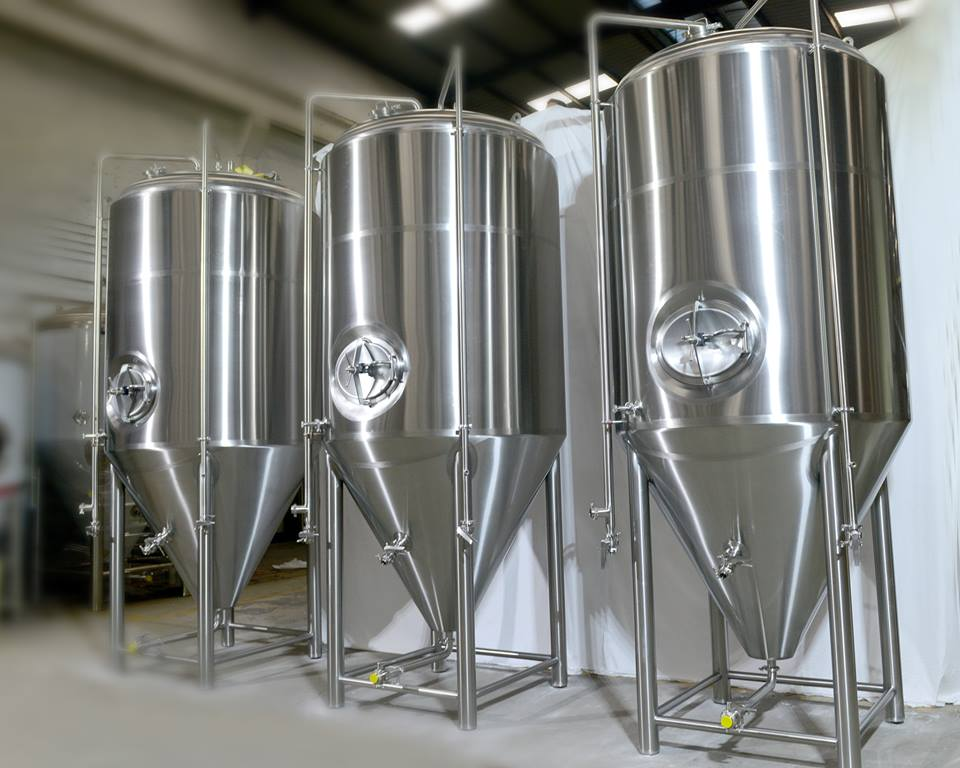

    2.Fermentation System

    Zunhuang company are generally use 12 days as fermentation to configured fermentor,high quality fermentation, fermented good quality beer,the right amount of good commodity market with a bright future.


    The fermentation tank adopt cooling jacket and two-stage cooling refrigerant control mode at the cone and cylinder. So such design and cooling method to control the flow of the cooling liquid state in fermentation tank by the size of the two-stage cooling refrigerant flow. It will improve heat transfer efficiency and cooling rate, faster cooling, and reduce cooling costs and high economic efficiency equipment commercial operation.

    Tank date:

    1. Capacity: 50L-30000L, 1bbl-100bbl, +25% Head space

    2. Interior shell thickness 3-6mm, Exterior shell=2mm

    3. 100% TIG welding with pure argon gas shield

    4. Interior finish: pickled and passivated, external polished, 80mm insulated

    5. Test pressure 3 bar, working pressure 1.5 bar

    6. Glycol zones (Both on side and concial/bottom)

    7. 60°conical bottom for Fermener, Shadow less side man way

    8. Racking arm, Sample valve, Pressure relief valve on the top, Dry hopping on the top

    9. Mechanical relief valve 3 bar on CIP arm with pressure gauge

    10.Adjustable tank leveling pads beer stainless steel tank

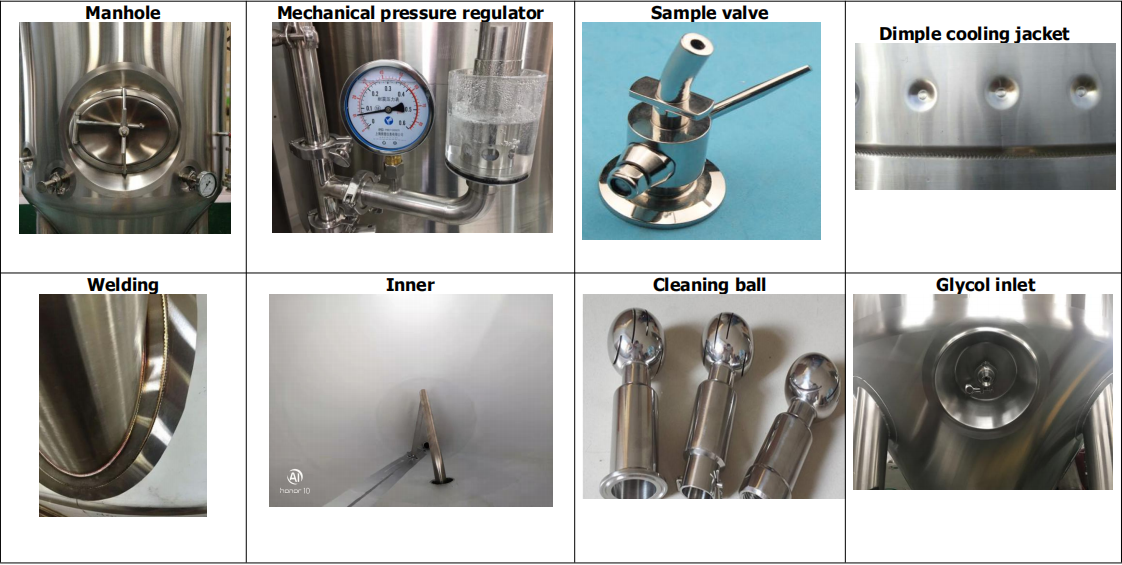

    Details treatment

    Polishing

    3. Cooling System
