    SS316 500L Craft Beer Equipment With 3 Vessel

    Ask Lasest Price
    Brand Name : ZUNHUANG
    Model Number : ZHET-500L
    Certification : CE ISO
    Price : USD5000-USD 42000
    Payment Terms : L/C, T/T, D/A, Western Union, MoneyGram
    Supply Ability : 30sets per month
    Delivery Time : 30days
    • Product Details
    • Company Profile

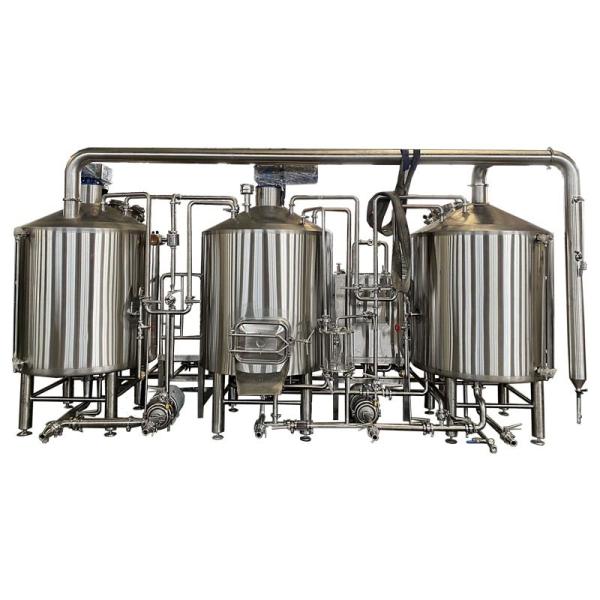

    SS316 500L Craft Beer Equipment With 3 Vessel

    500L beer brewing equipment with 3 vessel beer brewing system

    1.Mash system beer brewhouse equipment

    Zunhuang series mash system consist of 1 vessel mash system, 2 vessels mash system, 3 vessels and other design, mainly includes mash tank, brew kettle, lauter tank and whirlpool.


    The main part of equipment in this system are made of SUS304, SS316 reaching international standard level.(Zunhuang company also can customized high quality copper equipment according to user place).

    500L Germany 3 vessel

    German style: Mash tun/Brew kettle+Lauter/ Whirlpool.

    HLT is optional.

    Material: SS304/SS316/SS316L/Red copper/Titanium plate/Other material.

    Heating method: Electric heating/ Steam heating/ Direct fire heating.

    For mash system, beside these main tanks also with other auxiliary equipment such as pump, plate heat

    exchanger, buffer tank, hop filter, platform, pipes and other necessary.

    Support customization, please contact for more requirements!

    Fermentation System

    Zunhuang company are generally use 12 days as fermentation to configured fermentor,high quality fermentation, fermented good quality beer,the right amount of good commodity market with a bright future.


    The fermentation tank adopt cooling jacket and two-stage cooling refrigerant control mode at the cone and cylinder. So such design and cooling method to control the flow of the cooling liquid state in fermentation tank by the size of the two-stage cooling refrigerant flow. It will improve heat transfer efficiency and cooling rate, faster cooling, and reduce cooling costs and high economic efficiency equipment commercial operation.

    Tank date:

    1. Capacity: 50L-30000L, 1bbl-100bbl, +25% Head space

    2. Interior shell thickness 3-6mm, Exterior shell=2mm

    3. 100% TIG welding with pure argon gas shield

    4. Interior finish: pickled and passivated, external polished, 80mm insulated

    5. Test pressure 3 bar, working pressure 1.5 bar

    6. Glycol zones (Both on side and concial/bottom)

    7. 60°conical bottom for Fermener, Shadow less side man way

    8. Racking arm, Sample valve, Pressure relief valve on the top, Dry hopping on the top

    9. Mechanical relief valve 3 bar on CIP arm with pressure gauge beer brew line

    10.Adjustable tank leveling pads
