    3mm Conical Fermentation Vessel 8000L Conical Jacketed Tank

    Ask Lasest Price
    Brand Name : ZUNHUANG
    Model Number : ZH-100HL
    Certification : CE ISO9001
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200unit/per year
    Delivery Time : 20-35days
    • Product Details
    • Company Profile

    3mm Conical Fermentation Vessel 8000L Conical Jacketed Tank

    SS304 Conical Fermentation Vessel, 8000L Conical Jacketed Tank


    The fermentation tank adopt a cooling jacket and two-stage cooling refrigerant control mode at the cone and cylinder. So such a design and


    cooling method to control the flow of the cooling liquid state in the fermentation tank by the size of the two-stage cooling refrigerant flow.


    It will improve heat transfer efficiency and cooling rate, faster cooling, and reduce cooling costs and high economic efficiency


    equipment commercial operation.



    Features:


    Fermentation Tank:


    1. Capacity: 50L-30000L, 1bbl-100bbl, +25% Headspace


    2. Interior shell thickness 3-6mm, Exterior shell=2mm


    3. 100% TIG welding with pure argon gas shield


    4. Interior finish: pickled and passivated, external polished, 80mm insulated


    5. Test pressure 3 bar, working pressure 1.5 bar


    6. Glycol zones (Both on the side and conical/bottom)


    7. 60°conical bottom for Fermenter, Shadowless side manway


    8. Racking arm, Sample valve, Pressure relief valve on the top, Dry hopping on the top


    9. Mechanical relief valve 3 bar on CIP arm with pressure gauge


    10.Adjustable tank leveling pads.

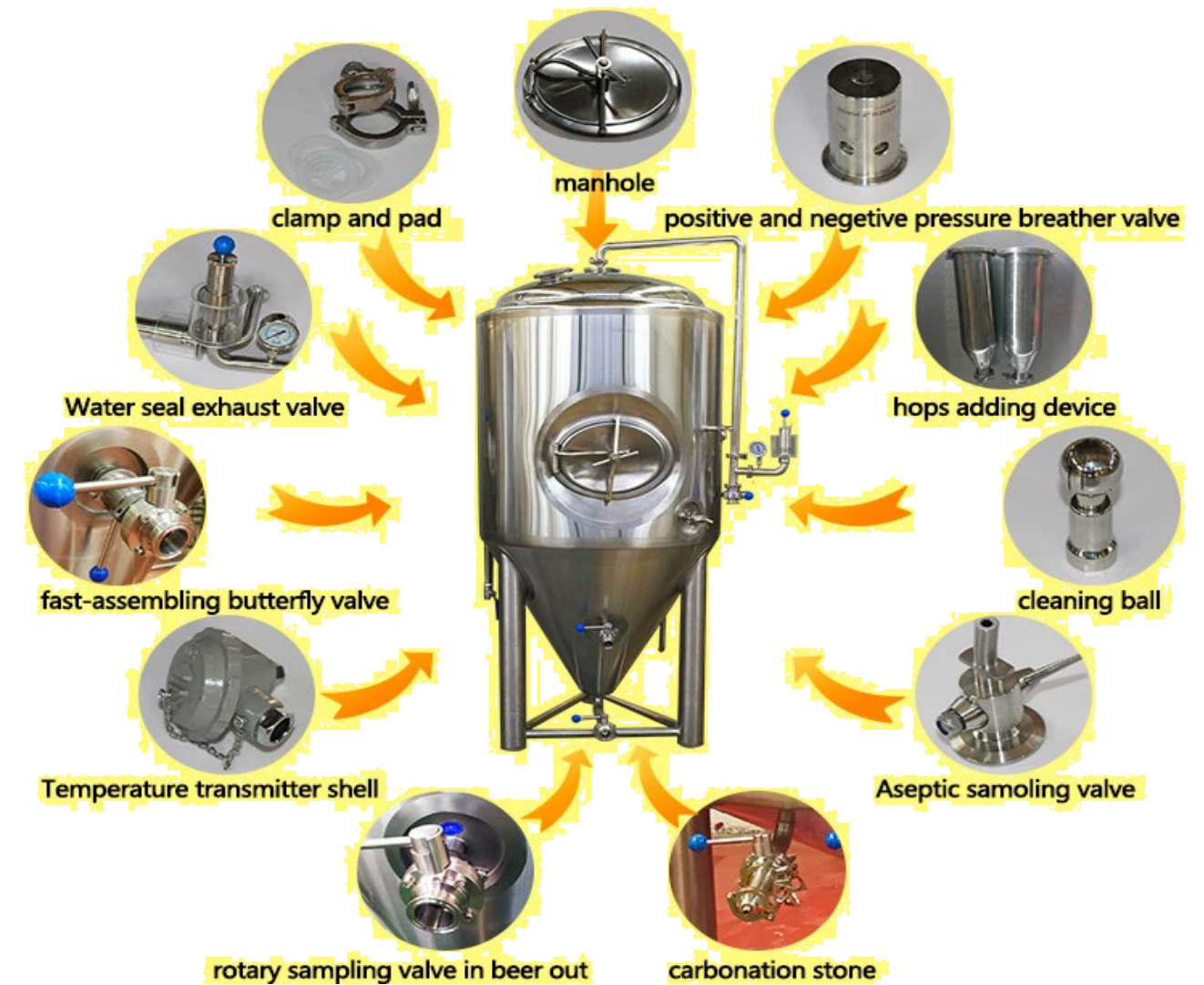

    Fermentation tank Details:



    Our service:


    a

    Free consultation service before, during, and after-sales.


    b

    Project planning and design services.


    c

    Free debugging instruction of equipment until everything is functional.


    d

    Management of equipment' long distance shipping from seller's factory to named port or station by buyer.


    e

    Training of equipment maintenance and operating personally.


    f

    New production techniques.


    g

    Provide 36 months complete warrantee for main parts and

    life-time maintenance service;

    The seller is responsible for the nature damage of the machinery

    in the warranty period except for man-made damage;

    All spare parts and wearing parts are attached to the machinery for free.


    One-stop solution:

    Include Malt mill machine, control cabinet , glycol tank+ chiller, CIP tank, for the brewery complete production line.
