SS304 50L - 30000L Beer Fermenting Equipment , Conical Fermentation Tank

    Buy cheap SS304 50L - 30000L Beer Fermenting Equipment , Conical Fermentation Tank from wholesalers

    Buy cheap SS304 50L - 30000L Beer Fermenting Equipment , Conical Fermentation Tank from wholesalers
    • Buy cheap SS304 50L - 30000L Beer Fermenting Equipment , Conical Fermentation Tank from wholesalers
    • Buy cheap SS304 50L - 30000L Beer Fermenting Equipment , Conical Fermentation Tank from wholesalers
    • Buy cheap SS304 50L - 30000L Beer Fermenting Equipment , Conical Fermentation Tank from wholesalers

    SS304 50L - 30000L Beer Fermenting Equipment , Conical Fermentation Tank

    Ask Lasest Price
    Brand Name : ZUNHUANG
    Model Number : ZH-20BBL
    Certification : CE ISO9001
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200unit/per year
    Delivery Time : 20-35days
    • Product Details
    • Company Profile

    SS304 50L - 30000L Beer Fermenting Equipment , Conical Fermentation Tank

    Production Introduce:

    Fermentation system:

    1. Capacity: 50L-30000L, 1bbl-100bbl, +25% Headspace

    2. Interior shell thickness 3-6mm, Exterior shell=2mm

    3. 100% TIG welding with pure argon gas shield

    4. Interior finish: pickled and passivated, external polished, 80mm insulated

    5. Test pressure 3 bar, working pressure 1.5 bar

    6. Glycol zones (Both on side and conical/bottom)

    7. 60°conical bottom for Fermenter, Shadowless side manway

    8. Racking arm, Sample valve, Pressure relief valve on the top, Dry hopping on the top

    9. Mechanical relief valve 3 bar on CIP arm with pressure gauge

    10.Adjustable tank leveling pads.

    Technical Parameter

    Production capacity5001000200050001000020000

    Volume

    Effective/Total

    500/6601000/13302000/26605000/6600

    10000/

    13300

    20000/

    26600

    Inner shell diameter(mm)140016002000280030003500
    Cooling area m22.24.48.7142548
    Working pressure0.140.140.140.140.140.14
    Cooling methodDimple plate jacket

    Dimple plate

    jacket

    Dimple plate jacket

    Dimple plate

    jacket

    Dimple plate

    jacket

    Dimple plate jacket
    Conical angle606060787878

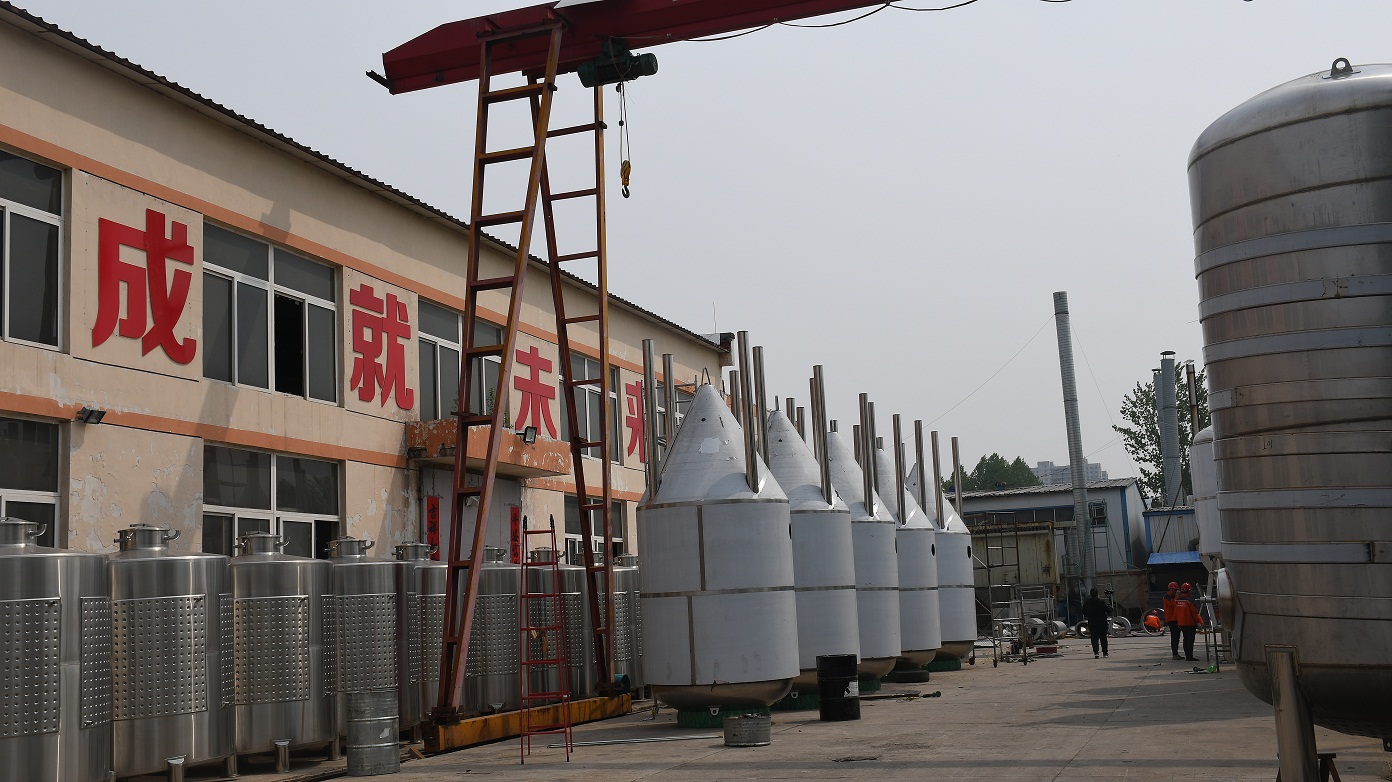

    Our company :

    4. Shandong Zunhuang Brewing Equipment Co., Ltd established in 2012, a factory covering area 8000 square kilometers. we have first-class scientific research and development personnel, first-class production and technical personnel, advanced processing equipment, established a perfect after-sale service and security system with good ability of equipment supply and services, Our engineer can go abroad installation and personnel training, remove all your worries and let you have a smoothly brewery project, our professional team will be your strong backing and protect your brewing journey.


    Our certificate:


    Packaging and delivery:

    1. Main tanks, vessels, and machines will be packaged with painted steel frames.
    2. All spare parts, accessories, and fittings will be packaged with a painted steel boxes.
    3. All items wrapped with soft package for protection.
    4. Standard shipping containers will be used for general purposes.
    5. All equipment will be loaded into containers according to exact container layout drawings.
    6. After loaded into containers, all equipment will be well fixed to the containers.


    Our service

    aFree consultation service before, during, and after-sales.
    bProject planning and design services.
    cFree debugging instruction of equipment until everything is functional.
    d

    Management of equipments' long distance shipping from seller's factory

    to named port or station by buyer.

    eTraining of equipment maintenance and operating personally.
    fNew production techniques.
    g

    Provide 36 months complete warrantee for main parts and

    life-time maintenance service;

    The seller is responsible for the nature damage of the machinery

    in the warranty period except for man-made damage;

    All spare parts and wearing parts are attached to the machinery for free.


    Customer visit:
