2500L Brewery Equipment Beer Produce Line Turnkey Project

The whole beer equipment is consisted of Malt milling system, Mash system, Fermentation system, Refrigeration system, Control system and CIP cleaning system. The tank of the system all adopts Red copper and S.S 304,and the system also have high automatic control capacity.

Simple operation ,PLC automatic control system ,PLC semi-automatic control system.

Equipments characteristics: Small investment, quick effectiveness, high quality, lower prices, the investment repayment is fast, the service life of equipment is long, easy operation, lower cost. Strong technical force.

Beer Brewing Equipment List

Beer process:

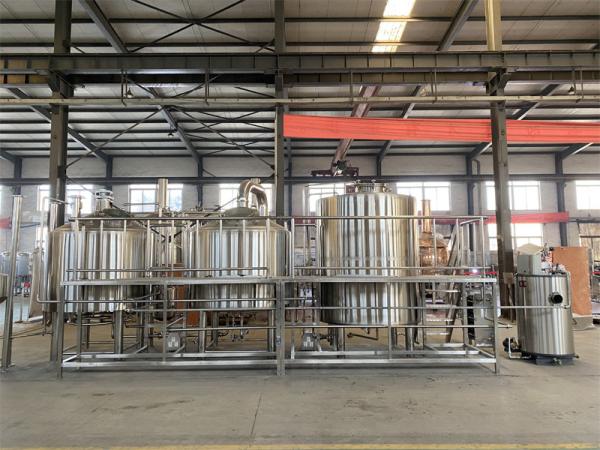

Mash System

1.Material:SS304 Inside wall:3mm outside wall:2mm,Insulation: Rock wool,TH=80mm.

2.Inner surface is pickled and passivated.

3. Heating method: electric heating or steam heating or direct fire.

4.Temperature measurement method: PT100 temperature probe.

5.Cleaning method: Fixed rotate cleaning ball.

6.Agitation:Horizontal motor at the top stirring. Power:0.75kw, speed 60RPM.

7. Process: TIG welding, no welding dead, fluid quality assurance.

8.Raker: Horizontal motor stirring , motor power 0.75 KW, revolving rate 60RPM, high power, low speed to ensure complete worse layer.

9.Sieve plate with discharge hole, thermometer and necessary valves and fittings.

10.Nature filter wort: use of natural pressure filtration to ensure the integrity of the grain and the clarity of wort

Fermentation Tank

1. Cylinder tank; Inside surface: SUS304, Thickness: 3mm,Outside surface: polishing stainless steel, Thickness: 2mm

2. Thermal insulation material: Polyurethane (PU) foam, Insulation thickness: 80MM.

3.Inside surface is pickled and passivated to resist corrosion.

4.Manhole: top manhole/ side manhole

5.Design pressure 3bar, Working pressure: 1.5bar

6.Bottom design: 60 Or 78 degree cone for easy to exist yeast.

7.Cooling method: Dimple cooling jacket.

8.Cleaning system: Fixed-round rotary cleaning ball.

9.Control system: PT100, temperature control

10. Hops adding device, CIP arm with spray ball, pressure gauge, mechanical pressure regulating valve, sampling valve, breath valve, Ice water solenoid valve, safety valve, etc.

Cooling System

Cooling system mainly includes Ice water tank, glycol water tank, plate heat exchanger, refrigeration unit, cooling pipe and valves and control system.

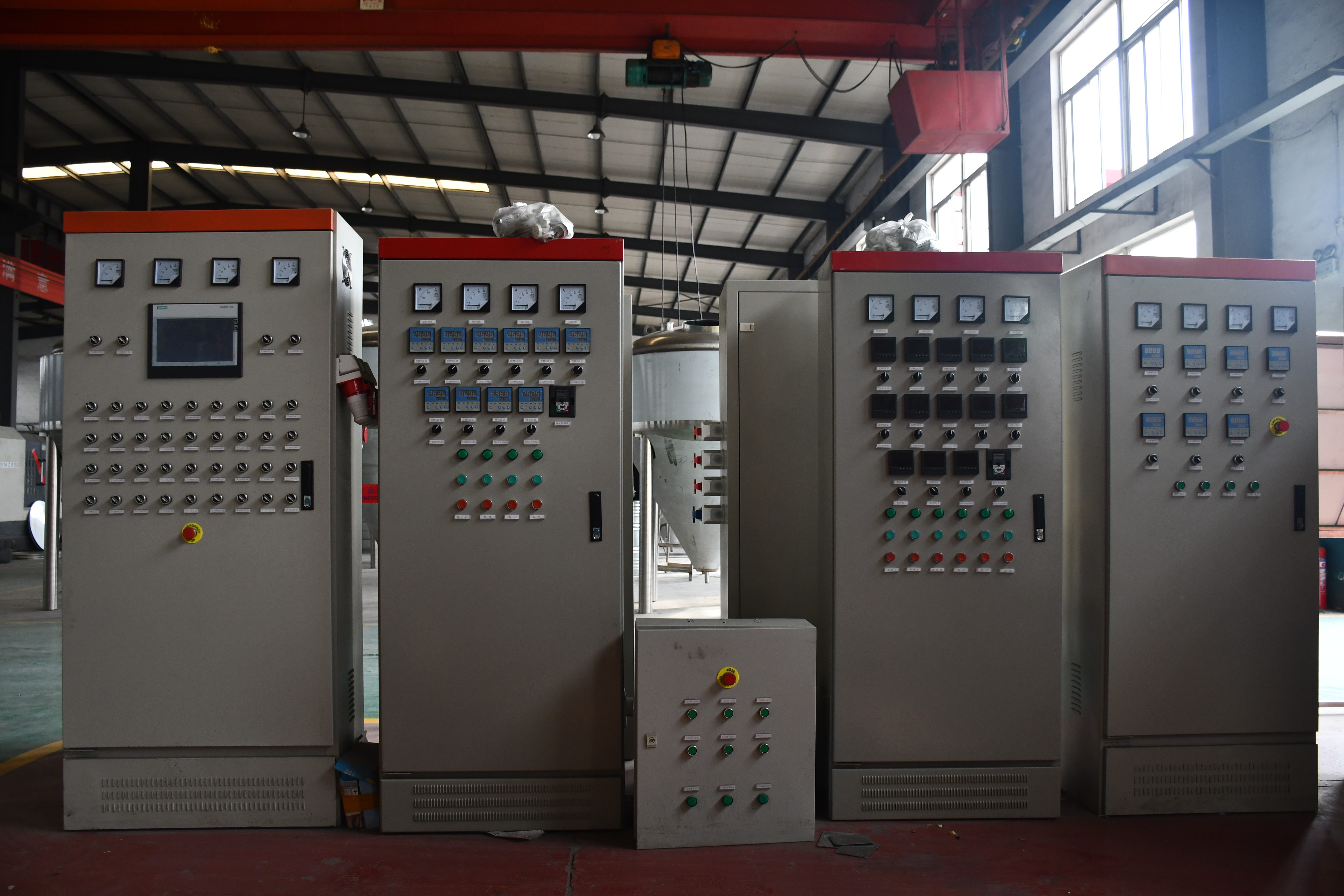

Control System

Control system is the core part in the whole beer production line, including: malt mash, mash, fermenting, cooling, temperature control, pressure control and other auxiliary. It can achieve the part control or whole PLC automatic control.

CIP Cleaning System

CIP cleaning system is consist of alkali tank, acid tank, sterilization water tank, disinfection tank, sanitary pump.

Part IV:Packing and shipping

1. Ocean shipment,railway shipment,express delivery.

2. No matter flat pack to save shipping cost,or fill with your merchandise into allassembled displays to ship together,all is up to you.

3. And we have our own department to arange the shipments.we ship worldwide dierctly by see,railway or express.we will provide all documents you need to import.

4. We packed the goods to meet the transport distance, shock, rust and anti-handling requirements damaged before shipping, to ensure the safe transport of goods to reach the buyer designated location before it is shipped.

After-sale Service for the whole life.

2. 24h service for you, solve your urgent problem first time.

3. 3 years warranty for the main products.

4. Free design for your brewery layout for 2D or 3D.

5. Spare parts replacement and repair service provided.

6. Engineer going abroad for installation, debugging and technical training if you need

7. Provide the Form E, CO, etc..others necessary reduce import Tax files for you.

8.To provide update information about brewing equipment technology once we test.

9.Help you send the goods if you have others company order, then send to you together.

10.Door to Door service, if you need any brewing parts.

Shandong Zunhuang Brewing Equipment Co., Ltd is a professional beer equipment manufacturer. We are specialized in the professional design, manufacture, installation and commissioning of beer equipment and supporting facilities. Our products include mashing equipment, fermentation equipment, yeast spread cultivation equipment and refrigeration equipment for small and medium-sized brewery, hotel, pub, etc.

Our company purpose: “Quality first, customer highest”, use the short period provide direct and comprehensive service, and improve the products’ valve and market competitive.

Selling equipment is not the Purpose of ZHBrew, our Real purpose is to protect your brewing journey!!

With the development of 8 years, Our microbrewery equipment and service have got the high reputation in Belgium, Germany, U.S., Canada, UK, Sweden, New Zealand, Australia, Korea, Russia, India and other more than 40 Eurasian countries and regions.

The most reliable manufacture! The most professional design! The most durable quality!

The most secure guarantee! The most quick after-sale service!

Our Team

We have professional techinicain team all in this area more than 20 years, welcome customers from all over the world visit our website, and inform us if you have any needs, we are looking forward to give you good services!

Certification: Brewery equipment manufacturing and exporting certificate

Part 1:

Business License: Business License for beer brewing equipment, brewery parts and relative facilities manufacturing and trading. It is a certificate of legality for this business.

Part 2: Quality Certification

With the excellent production and quality control management, ZHBrew has got the ISO 9001 and Europe CE certificate. Meanwhile,we can also design the control panel by the UL of USA standard and CSA of Canadian standard.

The standards provide guidance and tools for companies and organizations who want to ensure that their products and services consistently meet customer’s requirements, and that quality is consistently improved.

Our Service

Technology Support:

ZHBrew has a professional after-sales service team with about 20 years experience. We will help our to build your brewery and let your dream come true!

Training service:

ZHBrew experienced trainers are available to provide on-site brewery training. This includes operating the brewhouse / fermenters / cooling / touch screen control panel and all other equipment come from our company , testing of brewing equipment, as well as cleaning and maintenance procedures, also ZHBrew experienced trainers will share you some brewing recipes.

After service:

Ten provide to service you

1. To provide the after-sale Service for the whole life.

2. To provide 24h service for you, solve your urgent problem first time.

3. To provide 3 years warranty for the main products

4. To provide free design for your brewery layout for 2D or 3D

5. To provide Spare parts replacement and repair service provided.

6. To provide update information about brewing equipment technology once we test

7. To provide Door to Door service, if you need any brewing parts

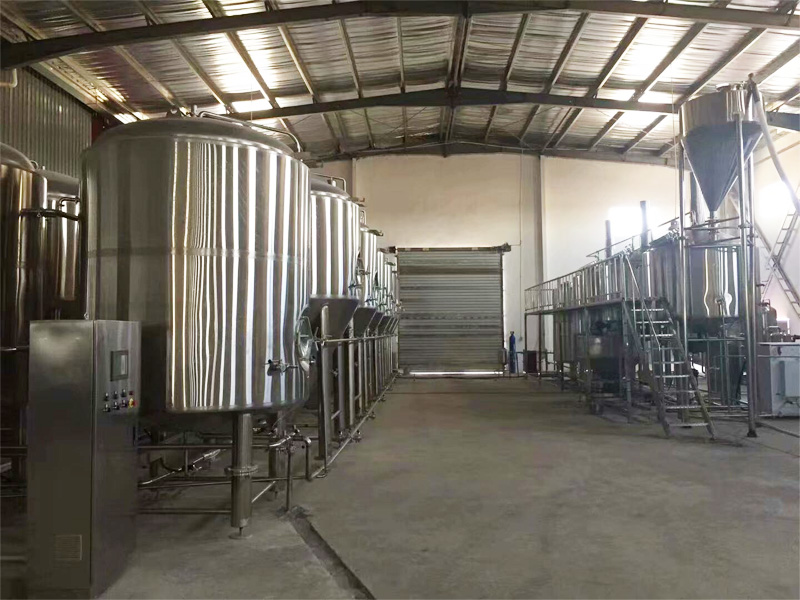

Successful Case
