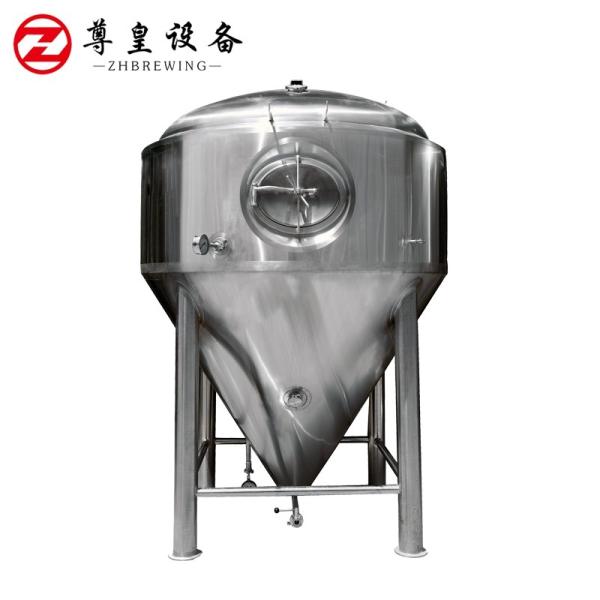

    Cooling Jacket Beer Fermentation Tank 3 Bar 0.15 Mpa for Brewery

    Ask Lasest Price
    Brand Name : ZHBREWING
    Model Number : ZH-1000L
    Certification : CE, ISO
    Price : Negotiation
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 15sets per month
    Delivery Time : 25-35working days
    • Product Details
    • Company Profile

    Cooling Jacket Beer Fermentation Tank 3 Bar 0.15 Mpa for Brewery

    The fermentation tank adopt cooling jacket and two-stage cooling refrigerant control mode at the cone and cylinder. So such design and cooling method to control the flow of the cooling liquid state in fermentation tank by the size of the two-stage cooling refrigerant flow. It will improve heat transfer efficiency and cooling rate, faster cooling, and reduce cooling costs and high economic efficiency equipment commercial operation.


    Production capacity5001000200050001000020000
    VolumeEffective/Total500/6601000/13302000/26605000/660010000/1330020000/26600
    Inner shell diameter(mm)140016002000280030003500
    Cooling area m22.24.48.7152548
    Working pressure0.140.140.140.140.140.14
    Cooling methodDimple plate jacketDimple plate jacketDimple plate jacketDimple plate jacketDimple plate jacketDimple plate jacket
    Conical angle606060787878

    Tank date:
    1. Capacity: 50L-30000L, 1bbl-100bbl, +25% Head space

    2. Interior shell thickness 3-6mm, Exterior shell=2mm产品标题

    3. 100% TIG welding with pure argon gas shield

    4. Interior finish: pickled and passivated, external polished, 80mm insulated

    5. Test pressure 3 bar, working pressure 1.5 bar

    6. Glycol zones (Both on side and concial/bottom)

    7. 60°conical bottom for Fermener, Shadow less side man way

    8. Racking arm, Sample valve, Pressure relief valve on the top, Dry hopping on the top

    9. Mechanical relief valve 3 bar on CIP arm with pressure gauge

    10.Adjustable tank leveling pads
