Automatic Beer Keg Combine Washer And Filler, Washing And Filling Machine

Main Structures and Characteristics

1) SIEMENS S7-200 control unit is adopted for automatic control of all processes. Washing, disinfecting and CO2 pressure preparation will be automatically finished.

2) lye water, disinfecting water can be recycled to save water.

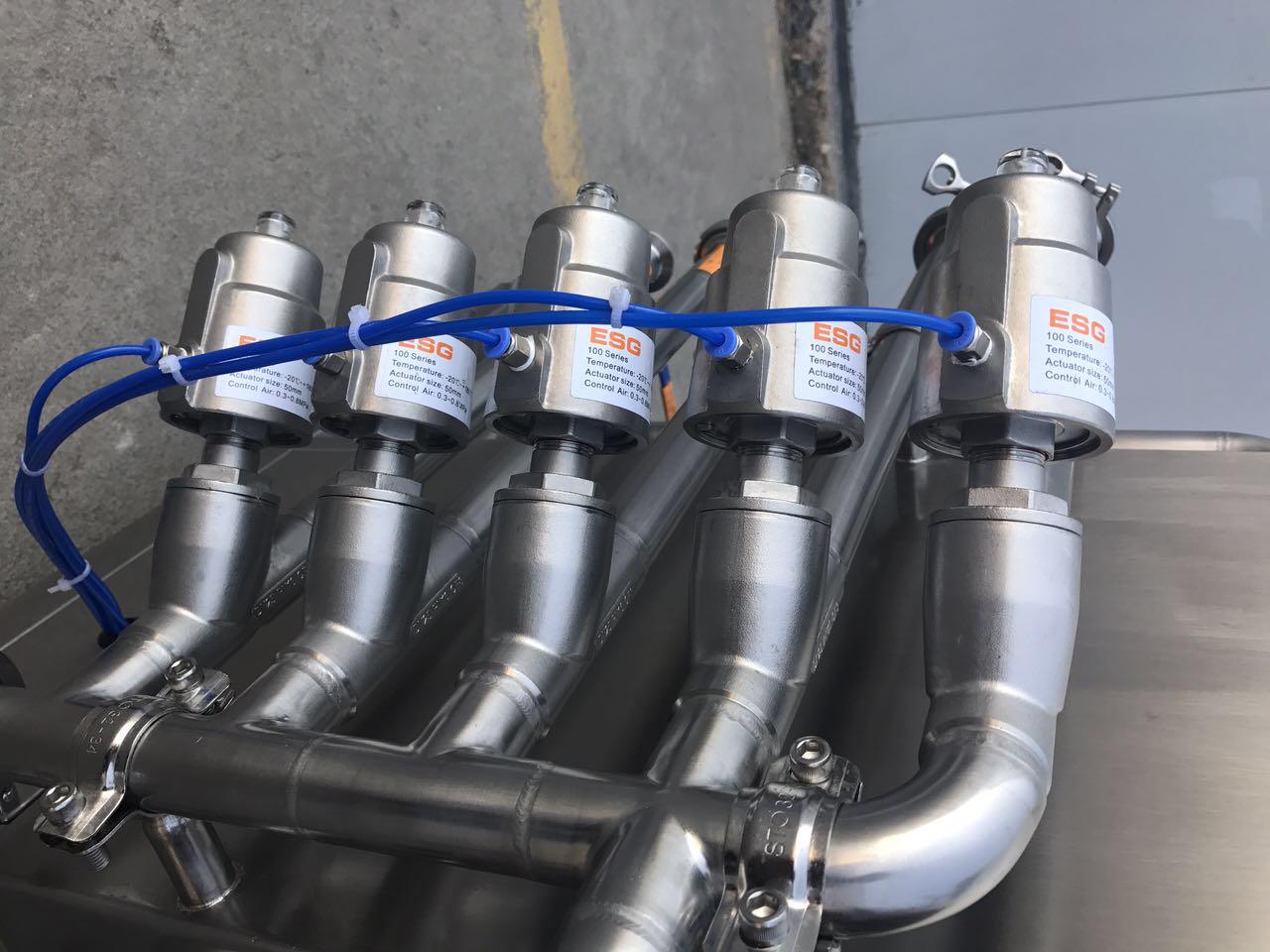

3) Adopt pneumatic angle vale combination to ensure a safe work.

4) Frame, working station, pipeline and valves are all by stainless steel, all pipelines and pneumatic system are all closed cycle. Good look and stable.

5) Time parameters can be adjusted according to customers' demands. If a procedure is not needed, you can turn the time parameter of this procedure to "0".

Product Description

CFA2-22S-T-H-1
Size W*L*H	1.23x1.57x2.03M	Moter type and brand	SUS304 pump head
Weight	210KGS	Temperature	Pt100
With slide or not	No	Temperature control mode	CHINA ITECH
Packing Size W*L*H	1.75x1.38x2.20M	Time setting way	Siemens
Capacity	Washing part: 20-30 pcs/h	Connect type	1.5'' Tri-cleamp
	Filling part: 40-60 pcs/h	Spear type	Depends on client's requirements
Power	According to user local power	Keg type	EURO/DIN/US 20L-60L
Power port	3P+N+G	Filling measurement type	No flow meter
Heater way	Steam heating	Washing part inlet with pressure detection or not	No
Power consumption	3.5KW
Main Material	SUS304	Washing part outlet with pressure detection or not	No
Water tank material and volume	Single tank/Volume=100L(2 pcs)

CFA2-33S-T-H-1-1M
Size W*L*H	2.20x2.30x2.20M	Moter type and brand	SUS304 pump head
Weight	320KGS	Temperature	Pt100
With slide or not	Yes	Temperature control mode	ITALY EVCO EV K401N7
Packing Size W*L*H	1.75x1.80x2.45M	Time setting way	Siemens PLC1200
Capacity	Washing part: 40-60 pcs/h	Connect type	1.5'' Tri-cleamp
	Filling part: 40-60 pcs/h	Spear type	Depends on client's requirements
Power	According to user local power	Keg type	EURO/DIN/US 20L-60L
Power port	3P+N+G	Filling measurement type	Flow meter
Heater way	Steam Coiler	Washing part inlet with pressure detection or not	Yes
Power consumption	5KW
Main Material	SUS304	Washing part outlet with pressure detection or not	Yes
Water tank material and volume	Single tank/Volume=100L(3 pcs)

The washer working procedure

Pressing → drain off → water washing → air blowing/drain off → hot soda-water washing → air blowing/to soda-water box → hot water washing →air blowing/drain off → hot water washing → drain off → steam sterilized (air blowing/drain off) →co2 blowing/drain off→ sterilized water washing →co2 blowing/to water tank→ co2 pressure preparing

The filler working procedure

Load the keg → Pressing → co2 pressure preparing → CO2 blowing spear → open the spear → filling → stop → unload the keg

CIP procedures at filling position:

Install washing accessory → start → spear cylinder open → time's up → stop

Equipment details
